Nokia FastMile
5G Gateway
Fast broadband without wires

Fast broadband without wires
Ever wonder why we live in a wireless world and still use wires to connect our homes to the internet? Fiber is fast, but today’s wireless networks are fast too delivering ultra fast broadband with 5G.


Simple Installation
No need to wait for an installer to come to your home. With FastMile Gateways, setup is as simple as plugging it in. Our device display visualizes the connection strength and direction so you can easily find the best location in your home.

5G speeds
5G is ten times faster than current LTE speeds. It’s not simply a new standard for mobile devices, it will quickly become the standard for home and small business communications. It’s available today through our 5G gateways.

Innovative design
Nokia is an industry leader in antenna design. Nokia FastMile Gateways use a unique indoor antenna configuration that connects your home at the highest possible speed for lag free gaming and videostreaming.
WiFi coverage
Our gateways provide high performance WiFi in your home using our Nokia WiFi technology. If you have a large home, simply add Nokia WiFi beacons to create a true mesh network for complete coverage.

Key features
Power of 5G
With industry leading antennas and WiFi, Nokia FastMile 5G gateways bring the full power of 5G to your home.
Grows with you
The Nokia FastMile Gateway provides solid WiFi performance that can be easily expanded with Nokia WiFi beacons.

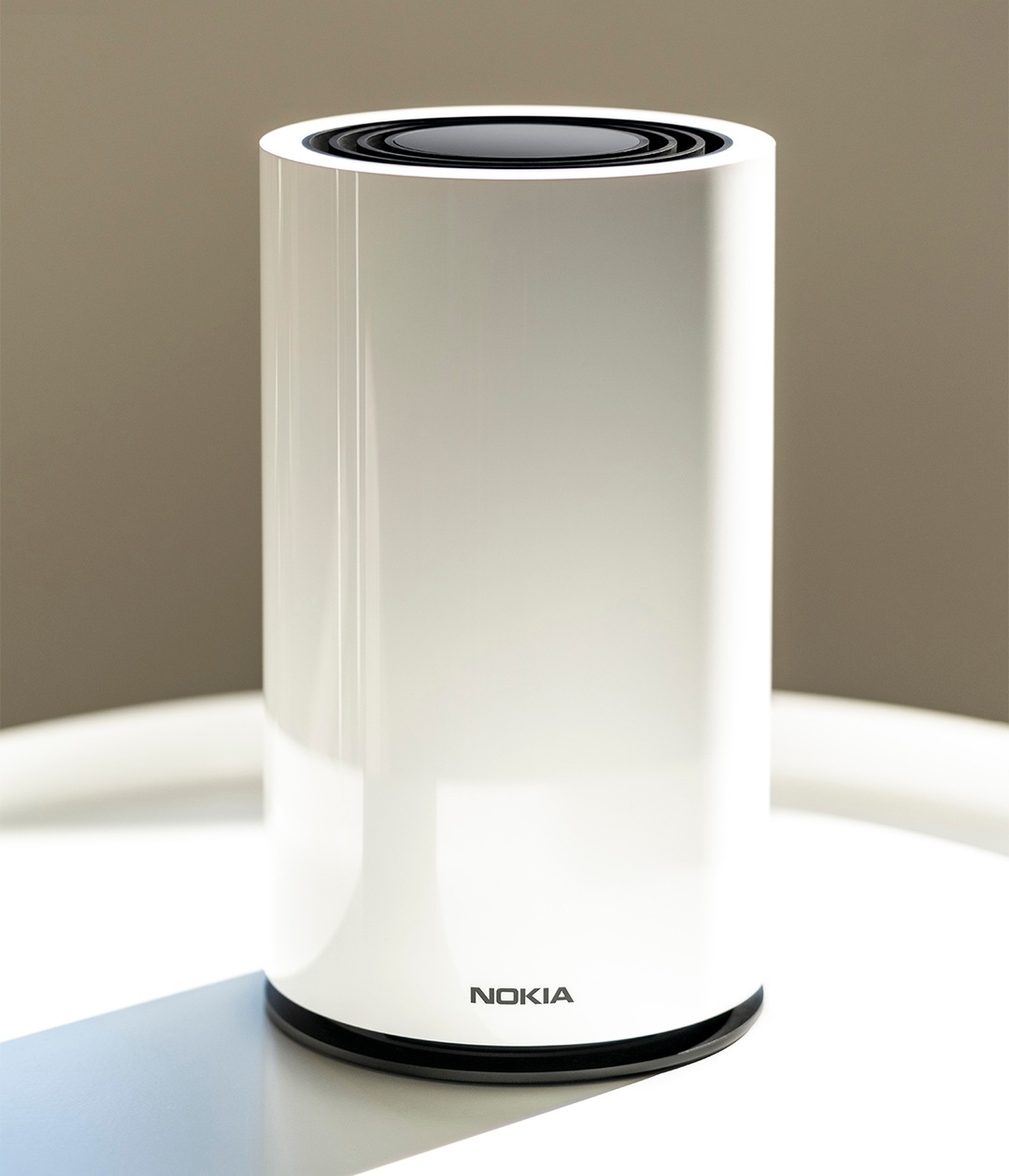

Contemporary Design
The gateway’s aesthetic is clean and modern, designed to blend seamlessly into your home environment.
Specs
Physical
Height: 240 mm (9.4 in)
Width: 140 mm (5.5 in)
Weight: 2.2 kg (4.9 lb)
Operating Environment
Temperature: 0 C to 45°C
(32 F to 113 F)
Power Requirements
12 V DC
Consumption: 41 W maximum DC power
supply
Network Terminations
Cellular WAN
– 5G NR (3GPP)
– 4G/Long Term Evolution (LTE)
– SIM slot (size: 4FF/nano)
1 GigE WAN
Connectivity Interfaces
Wi-Fi (802.11b/g/n, 802.11ac)
Three RJ-45 GigE LAN ports
USB 3.0 Type A port
Radio – Wi-Fi
Dual-band concurrent IEEE
802.11b/g/n 3x3 2.4 GHz and
802.11ac 4x4 5 GHz
Mesh topology with Nokia WiFi Beacons
Seamless roaming (IEEE 802.11k, 802.11v)
Security
Adheres to strict Nokia security standards
Wi-Fi Protected Access (WPA) support, including WPA Pre-Shared Key (PSK) and WPA2
Management
Multicolor LEDs for status view
Web user interface (WUI) for local configurations
TR-69 auto-configuration server (ACS) access for remote device management
Buttons
Power on/off
Wi-Fi Protected Setup (WPS)
Reset
Radio – Cellular
3GPP, release December 15 –
5G NR Non-Standalone (NSA) option 3a,
3x 5G NR interface band n78 TD
3500 MHz (3300 MHz – 3800 MHz)
Dual connectivity (EN-DC)
– 1 LTE + DC 5G (1+n78, 3+n78, 7+n78, 20+n78, 28+n78, 38+n78, 41+n78)
– 2 LTE + DC 5G (1+3+n78, 1+7+n78, 3+7+n78)
– 3 LTE + DC 5G (1+3+7+n78)
Downlink (DL) 4x4 multiple input, multiple output (MIMO) and 256 QAM
Uplink (UL) 1x1 single input, single output (SISO) and 64 QAM
Supported carrier bandwidths
– 5G: 20 MHz, 40 MHz, 50 MHz, 60 MHz, 80 MHz, 90 MHz, 100 MHz
– 4G/LTE: 5 MHz, 10 MHz, 15 MHz, 20 MHz
Supported 4G/LTE bands
– FDD: B1 (2100 MHz), B3 (1800 MHz), B7 (2600 MHz), B28 (700 MHz), B20 (800 MHz)*
– TDD: B40 (2300 MHz), B38 (2600 MHz), TDD B41 (2500 MHz)*
Extensive carrier aggregation between supported bands
*Supported only in product variant 3TG00077BB
Main functions
5G high gain antenna, automated antenna alignment, gain in n78: 11 dBi maximum
Multiband omni antenna for LTE
Integrated residential gateway
Central point of mesh network with Nokia WiFi Beacons
