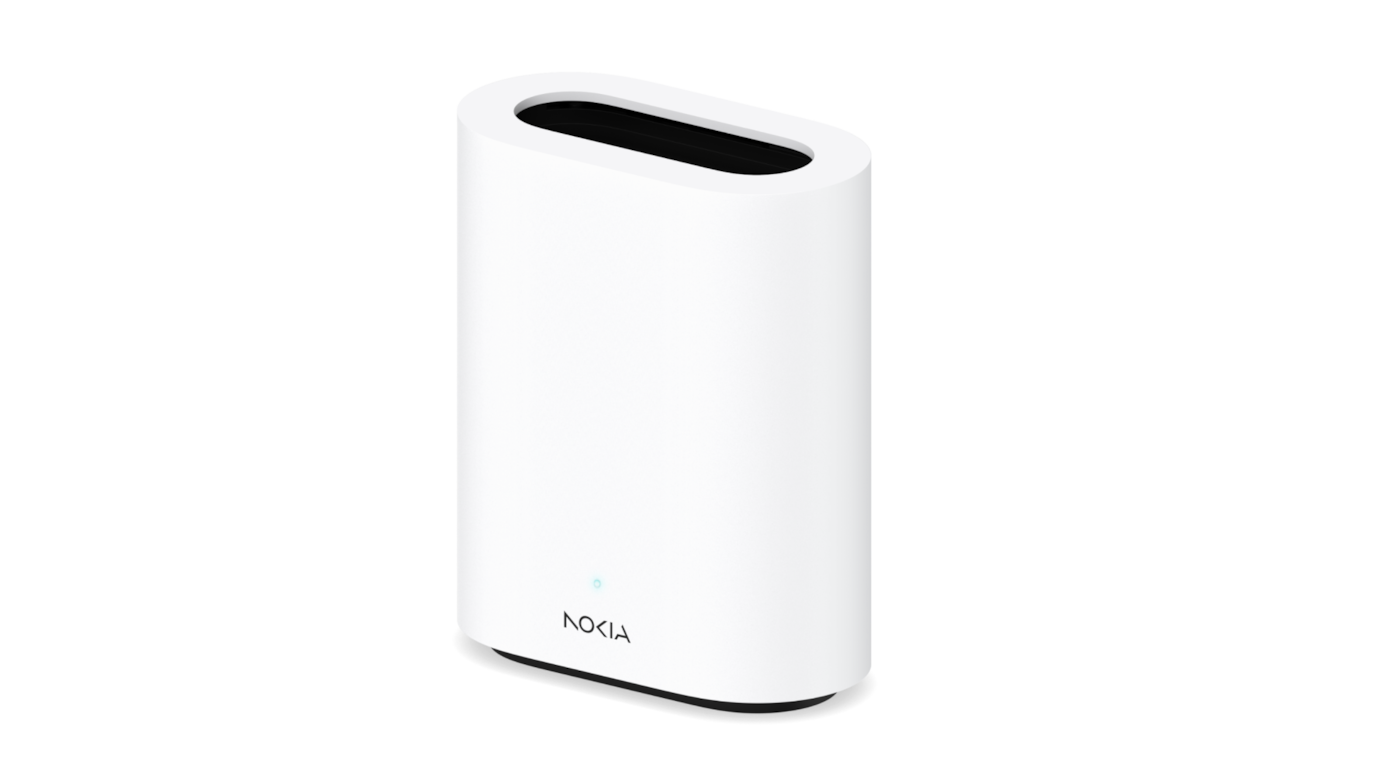

Nokia WiFi Beacon 9
Great Wi-Fi 7 tri-band performance
Overview
True Wi-Fi 7 tri-band gateway
- High-speed connectivity in the home (1x2.5 and 1x1 Gbps LAN ports and Wi-Fi capacity of up to 9.4 Gbps)
- True tri-band with 2x2 MIMO on each band
- Multi-link operation (MLO) support for higher throughput and lower latency
- Extend coverage with additional Beacon 9 or Beacon 4 units
- Corteca-powered mesh creates a seamless Wi-Fi 7 network throughout the home
- Simple, app-based setup and management.
Benefits and features
Unstoppable Wi-Fi
- EasyMesh™ enriched with additional Nokia features
- Intelligent channel selection for optimal Wi-Fi performance and no Wi-Fi glitches
- Dynamic backhaul management for perfect connectivity between Beacons.
Hyper-speeds
- 2.5 Gbps WAN port
- 1x2.5 and 1x1 Gbps LAN ports
- Tri-band with 2x2 MIMO on each band
- Higher throughput (4K QAM, 320MHz channel width, MLO)
- Lower latency (MLO, tri-band radios to separate backhaul traffic from fronthaul to client devices)
- PHY rate of BE9400
Whole home Wi-Fi coverage
- One unit covers up to 280 m2 (3000 sq. ft.)
- Connect additional mesh extenders via Ethernet or Wi-Fi to create a single network in a large or multi-story house.
Powered by Corteca
Boost your competitiveness with value-add applications
Our application containers can enhance the user experience, create customer loyalty, and bring you new forms of revenue. Use them to diversify your value-added offer, introduce new services, and get them to your subscribers more quickly.
Manage and optimize Wi-Fi networks
- Leverage the Corteca Home Controller for an advanced helpdesk, proactive Wi-Fi optimization and network-wide visibility
- Give your customers a local web interface that can be customized (branding, stylesheets, control what the end user can see and configure)
Nokia WiFi mobile app
Ready to go
The Nokia WiFi mobile app is packed with useful features, from analytics to parental control.
The mobile app ensures that the network is quick to set up, and simple to manage.
Download iOS app
Download Android app
Step-by-step instructions and tips
The Nokia WiFi mobile app gives your customers step-by-step instructions on how to install or extend the Wi-Fi network.
Scanning a QR code is the only thing they really need to do.
The app provides tips on how to connect Beacons and where to place them.
It even helps customers find the best location by testing the Wi-Fi signal.

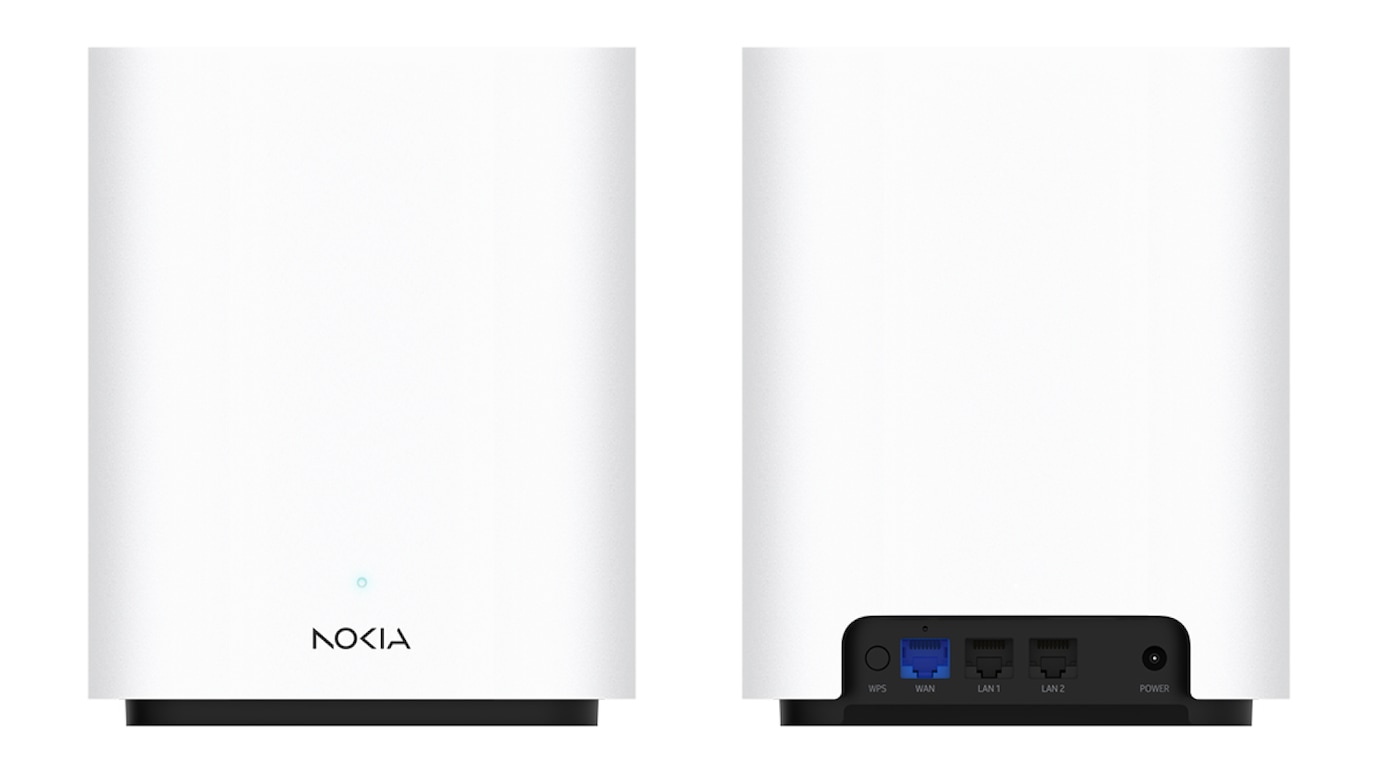

Specifications
Physical characteristics
- Height: 173.5 mm (6.8 in)
- Width: 140 mm (5.5 in)
- Depth: 71.5 mm (2.8 in)
Wireless LAN interfaces
- 802.11b/g/n/ax/be 2.4 GHz: 2x2 MIMO
- 802.11a/n/ac/ax/be 5 GHz: 2x2 MIMO
- 802.11ax/be 6 GHz: 2x2 MIMO
- Maximum EIRP up to 1 W (dependent on hardware variant and local regulations)
- Supports 320 MHz channel width on the 6 GHz band
Ethernet interfaces
- WAN side: One 1G/2.5G Base-T interface with RJ-45 connector
- LAN side: One 1G/2.5G Base-T interface with RJ-45 connector and one 10M/100M/1G Base-T interface with RJ-45 connector
